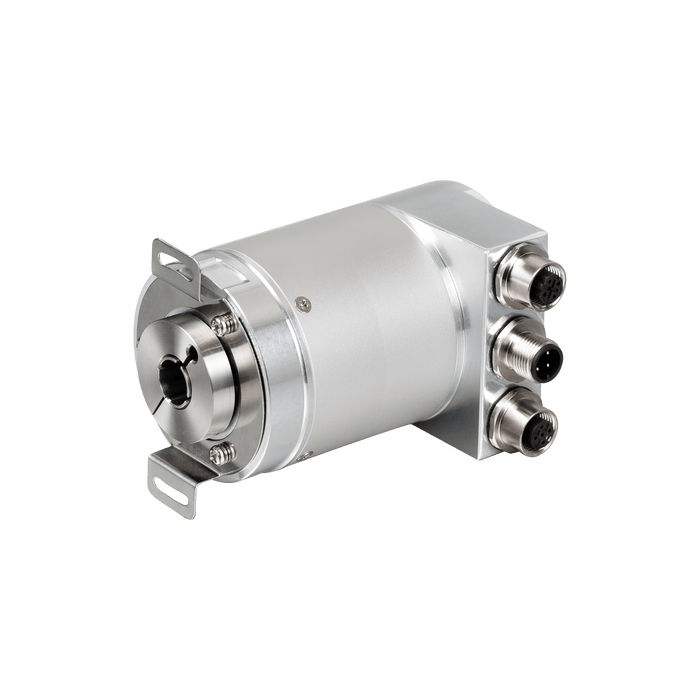

Absolute multiturn encoder, Series EAM58-ECND, Double-winged spring installation, Blind hollow shaft 12H7 mm length 30 mm, Hollow shaft 12H7 mm, 10...30 VDC, EtherCAT interface, 3x M12 connectors, Resoluteion 4096/8192

EAM58W12-BF6XTR-4096/8192ECND

SKU EAM58W12-BF6XTR-4096/8192ECND
by ELCO Industrial Automation

Absolute multiturn encoder, Series EAM58-ECND, Double-winged spring installation, Blind hollow shaft 12H7 mm length 30 mm, Hollow shaft 12H7 mm, 10...30 VDC, EtherCAT interface, 3x M12 connectors, Resoluteion 4096/8192

$880.79 - $880.79
$880.79
$880.79 - $880.79
$880.79
Availability:
In stock

Absolute multiturn encoder, Series EAM58-ECND, Double-winged spring installation, Blind hollow shaft 12H7 mm length 30 mm, Hollow shaft 12H7 mm, 10...30 VDC, EtherCAT interface, 3x M12 connectors, Resoluteion 4096/8192

Specifications

Moment of inertia 1.8 x 10-6 kgm2
Starting torque ＜ 0.05 Nm
Ambient temperature -40 ... +80 °C
Interface type EtherCAT
Connection type M12 Socket
Model Absolute Multiturn Encoder
Housing material Al-alloy
Housing diameter 58 mm
IP rating IP65
Flange type Fixing plate
Shaft type Blind hollow shaf

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
Datasheet DS_E_EAM58-ECND_V1.0_EN.pdf
3D Drawing CAD_E_EAM58W12-BF6XTR-xxxx-xxxxECND_V1.0.stp
Manual UM_E_EAM58-ECSC(ECND)_V1.0_EN&CN.pdf
Configuration file Config_E_EAM58-ECND(ECOM)_V1.0.zip
