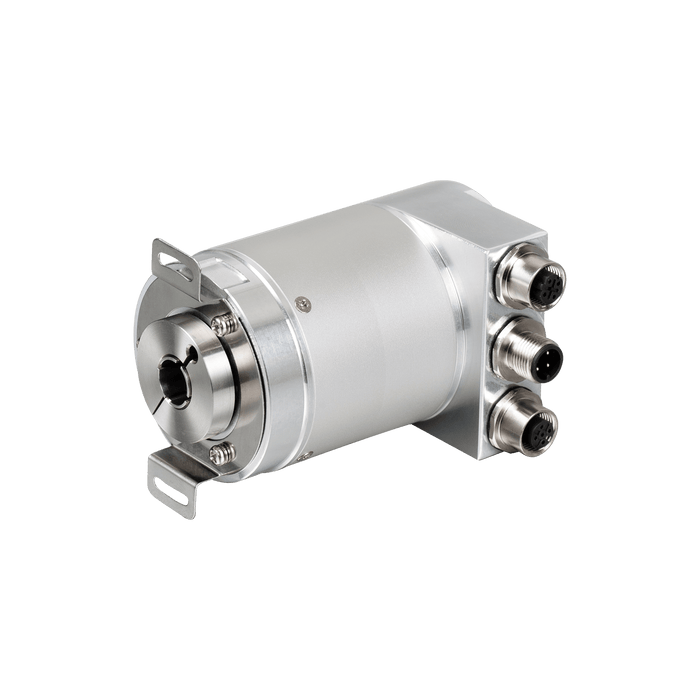

Absolute multiturn encoder, Series EAM58-ECND, Flange double-wing fixing plate, Hollow shaft 10H7 mm, 10...30 VDC, EtherCAT interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

EAM58W10-BF6XTR-4096/8192ECND

SKU EAM58W10-BF6XTR-4096/8192ECND
by ELCO Industrial Automation

Absolute multiturn encoder, Series EAM58-ECND, Flange double-wing fixing plate, Hollow shaft 10H7 mm, 10...30 VDC, EtherCAT interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

$812.89 - $812.89
$812.89
$812.89 - $812.89
$812.89
Availability:
In stock

Absolute multiturn encoder, Series EAM58-ECND, Flange double-wing fixing plate, Hollow shaft 10H7 mm, 10...30 VDC, EtherCAT interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

Specifications

Max load capacity of the shaft 80 N Axial160 N Radial
Shaft diameter 10 mm
Shock resistance 50 g, 11 ms
Model Absolute Multiturn Encoder
Housing material Al-alloy
Housing diameter 58 mm
IP rating IP65
Flange type Fixing plate
Shaft type Blind hollow shaft
Max Speed(rpm) 6000 rpm

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
Datasheet DS_E_EAM58-ECND_V1.0_EN.pdf
3D Drawing CAD_E_EAM58W10-BF6XTR-xxxx-xxxxECND_V1.0.stp
Manual UM_E_EAM58-ECSC(ECND)_V1.0_EN&CN.pdf
Configuration file Config_E_EAM58-ECND(ECOM)_V1.0.zip
