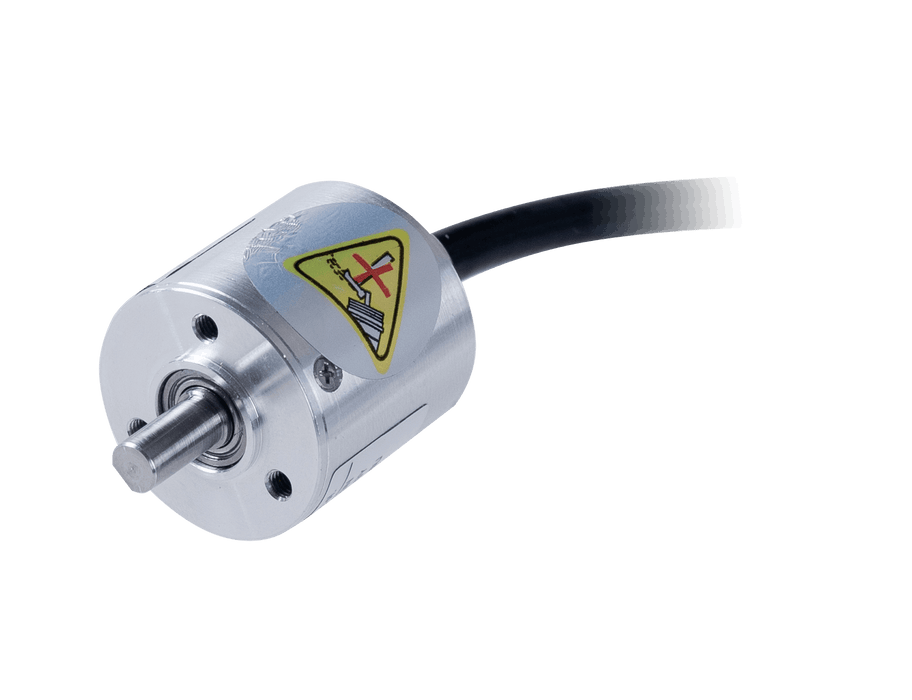

Shaft incremental encoder, Easydic Series EV28, 15 mm clamping flange, Shaft 5g6 mm, 10...30 VDC, Output TTL(with inverted signal), Axial, Cable 0.5 m, Resoluteion 600

EV28A5-L6PA-600

SKU EV28A5-L6PA-600
by ELCO Industrial Automation

Shaft incremental encoder, Easydic Series EV28, 15 mm clamping flange, Shaft 5g6 mm, 10...30 VDC, Output TTL(with inverted signal), Axial, Cable 0.5 m, Resoluteion 600

$172.07 - $172.07
$172.07
$172.07 - $172.07
$172.07
Availability:
In stock

Shaft incremental encoder, Easydic Series EV28, 15 mm clamping flange, Shaft 5g6 mm, 10...30 VDC, Output TTL(with inverted signal), Axial, Cable 0.5 m, Resoluteion 600

Specifications

Model Incremental encoder
Housing material Al-alloy
Housing diameter 28 mm
IP rating IP50
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 5 mm
Max load capacity of the shaft 5 N Axial10 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 7 x 10-6 kgm2
Starting torque ＜ 0.01 N·m;

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
Datasheet DS_E_EV28_V1.0_EN.pdf
Datasheet DS_E_EV28_V1.0_CN.pdf
3D Drawing CAD_E_EV28A5-xxPA-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
