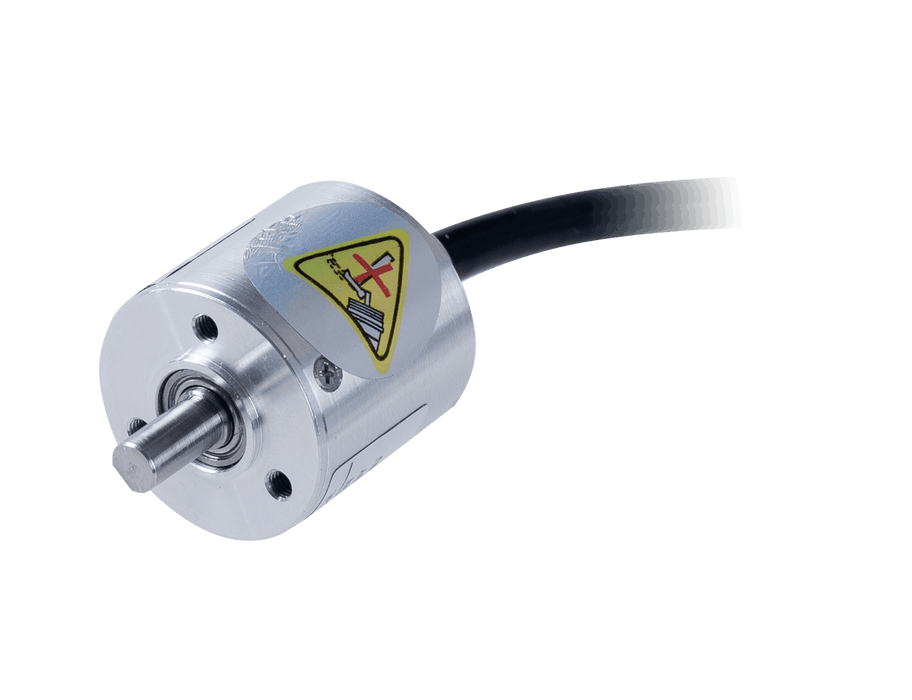

Shaft incremental encoder, Easydic Series EV28, 15 mm clamping flange, Shaft 5g6 mm, 5 VDC, Output TTL(with inverted signal), Axial, Cable 1.5 m, Resoluteion 360

Specifications

Vibration resistance 6 g, 10 ... 2000 Hz
Relative humidity/condensation 90 % Condensation not permitted
Ambient temperature -20 ... +80 °C
Weight 100 g
Resolution 360 ppr
Supply voltage 5 V DC
Output logic TTL
Permissible load(channel) ±50 mA
Pulse frequency 300 kHz
Connection type Cable outlet

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
Datasheet DS_E_EV28_V1.0_EN.pdf
Datasheet DS_E_EV28_V1.0_CN.pdf
3D Drawing CAD_E_EV28A5-xxPA-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
