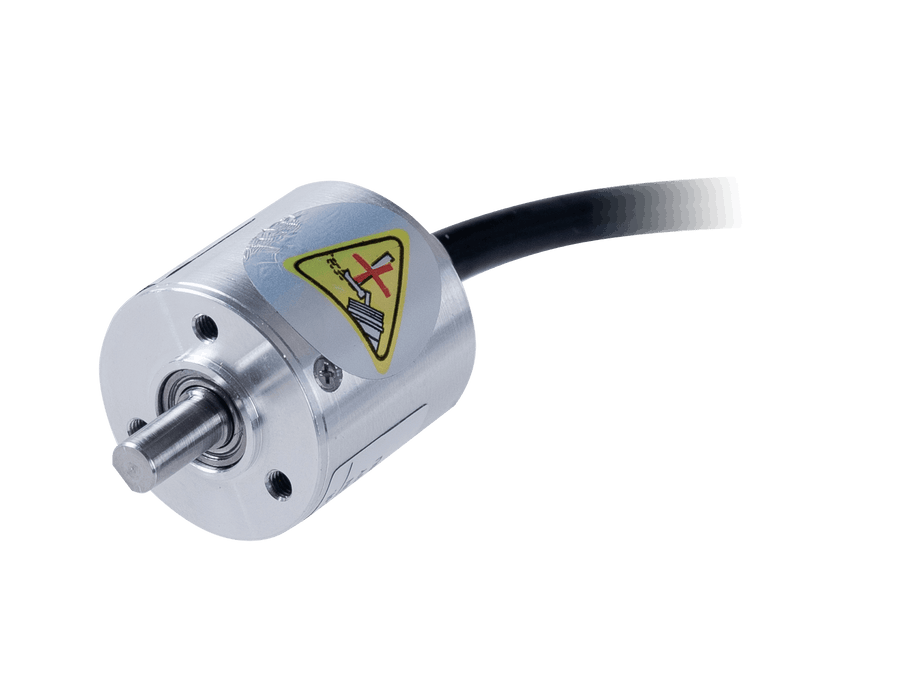

Shaft incremental encoder, Easydic Series EV28, 15 mm clamping flange, Shaft 4g6 mm, 10...30 VDC, Output Push-Pull HTL (without inverted signal), Axial, Cable 0.5 m, Resoluteion 512

EV28A4-P6PA-512

SKU EV28A4-P6PA-512
by ELCO Industrial Automation

Shaft incremental encoder, Easydic Series EV28, 15 mm clamping flange, Shaft 4g6 mm, 10...30 VDC, Output Push-Pull HTL (without inverted signal), Axial, Cable 0.5 m, Resoluteion 512

$164.43 - $164.43
$164.43
$164.43 - $164.43
$164.43
Availability:
In stock

Shaft incremental encoder, Easydic Series EV28, 15 mm clamping flange, Shaft 4g6 mm, 10...30 VDC, Output Push-Pull HTL (without inverted signal), Axial, Cable 0.5 m, Resoluteion 512

Specifications

Resolution 512 ppr
Supply voltage 10 ... 30 V DC
Output logic Push-pull HTL without inverted signal
Model Incremental encoder
Housing material Al-alloy
Housing diameter 28 mm
IP rating IP50
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 4 mm
Max load capacity of the shaft 5 N

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
Datasheet DS_E_EV28_V1.0_EN.pdf
Datasheet DS_E_EV28_V1.0_CN.pdf
3D Drawing CAD_E_EV28A4-xxPA-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
