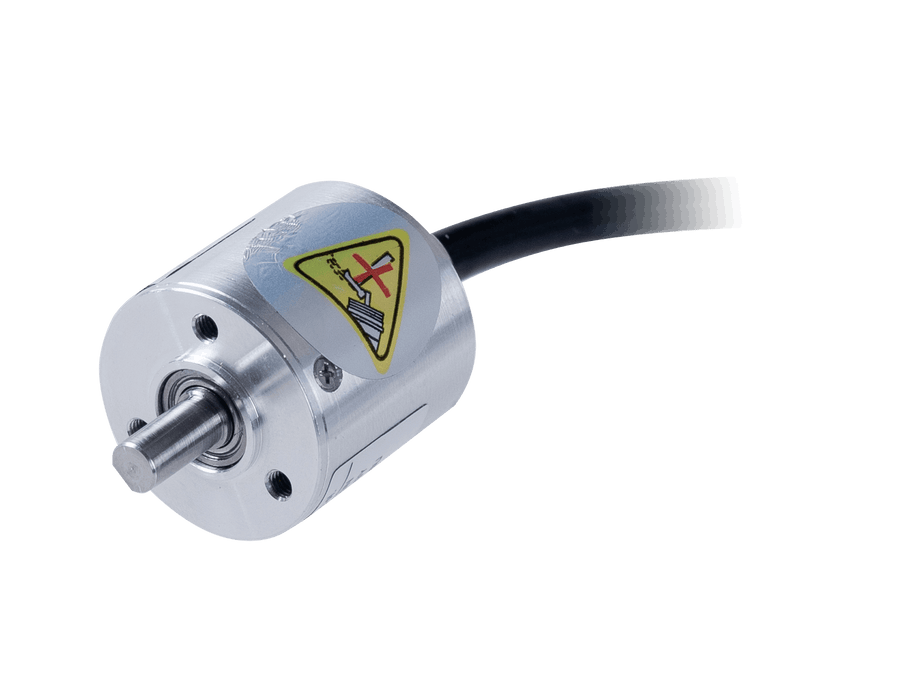

Shaft incremental encoder, Easydic Series EV28, 15 mm clamping flange, Shaft 4g6 mm, 10...30 VDC, Output Push-Pull HTL (without inverted signal), Axial, Cable 0.5 m, Resoluteion 500

Specifications

Weight 100 g
Resolution 500 ppr
Model Incremental encoder
Housing material Al-alloy
Housing diameter 28 mm
IP rating IP50
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 4 mm
Max load capacity of the shaft 5 N Axial10 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 7 x 10-

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
Datasheet DS_E_EV28_V1.0_EN.pdf
Datasheet DS_E_EV28_V1.0_CN.pdf
3D Drawing CAD_E_EV28A4-xxPA-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
