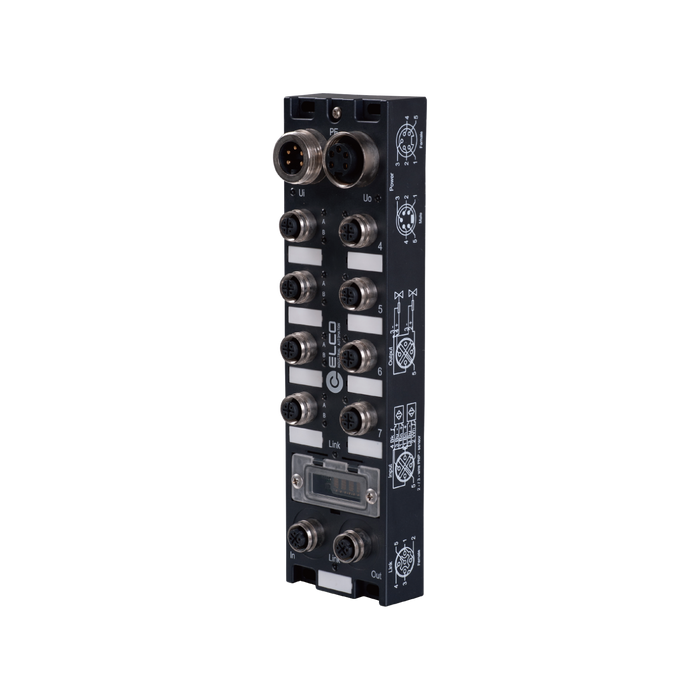

Fieldbus I/O Module Compact67, PROFINET, 16 DI/DO, PNP, 8 x M12 A-code 5-pin, 2 x M12 D-code 4-pin, 2 x 7/8" 5-pin, 24 V DC, Plastic housing, IP67

Specifications

Communication protocol PROFINET
IP rating IP67
Power connection 2 x 7/8" 5-pin
Fieldbus connection 2 x M12 D-Code
Power supply 18 ... 30 V DC
Input type PNP
Output type PNP
Dimensions 60 x 220 x 39 mm
Ambient temperature -25 ... +70 °C
Storage temperature -40 ... +85 °C
Certificate CE

No additional information at this time.

Downloads

CE ELCO_Compact67_01_CE.pdf
MTTF MTTF_AD_FCPN-16UP-M12_V1.0_EN.pdf
Datasheet ELCO_FCPN_16UP_M12_Datasheet_CN.pdf
Datasheet DS_AD_FCPN-16UP-M12_V1.0_EN.pdf
3D Drawing CAD_AD_Compact67-PN_V1.0.stp
EPLAN Drawing ELCO.FCPN-16UP-M12.edz
Manual UM_AD_Compact67-PN_V1.0_EN.pdf
Configuration file GSDML-V2.3-ELCO-IP67IO-20151110.zip
