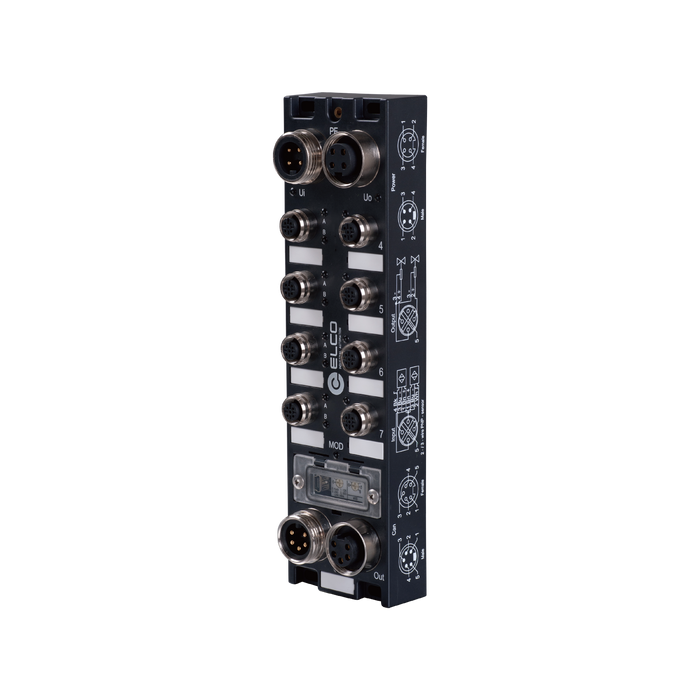

Fieldbus I/O Module Compact67, DeviceNet, 16 DI/DO, 8 x M12 A-code 5-pin, 2 x 7/8” 5-pin, 2 x 7/8" 4-pin, 24 V DC, Plastic housing, IP67

FCDN-16UP-M12

SKU FCDN-16UP-M12
by ELCO Industrial Automation

Fieldbus I/O Module Compact67, DeviceNet, 16 DI/DO, 8 x M12 A-code 5-pin, 2 x 7/8” 5-pin, 2 x 7/8" 4-pin, 24 V DC, Plastic housing, IP67

$490.98 - $490.98
$490.98
$490.98 - $490.98
$490.98
Availability:
In stock

Fieldbus I/O Module Compact67, DeviceNet, 16 DI/DO, 8 x M12 A-code 5-pin, 2 x 7/8” 5-pin, 2 x 7/8" 4-pin, 24 V DC, Plastic housing, IP67

Specifications

IP rating IP67
Housing material PC + ABS
Fieldbus connection 2 x 7/8" 5-pin
Power supply 18 ... 30 V DC
Input type PNP
Dimensions 60 x 220 x 39 mm
Ambient temperature -25 ... +70 °C
Certificate CE
Number of channels 16 DI/DO
Communication protocol DeviceNet
Signal connection 8 x M12 A-Code

No additional information at this time.

Downloads

CE ELCO_Compact67_03_CE.pdf
MTTF MTTF_AD_FCDN-16UP-M12_V1.0_EN.pdf
Datasheet ELCO_FCDN_16UP_M12_Datasheet_CN.pdf
Datasheet DS_AD_FCDN-16UP-M12_V1.0_EN.pdf
3D Drawing CAD_AD_Compact67-DN_V1.0.stp
Manual UM_AD_Compact67-DN_V1.0_EN.pdf
Configuration file EDS_FCDN_Compact67_20140429.zip
