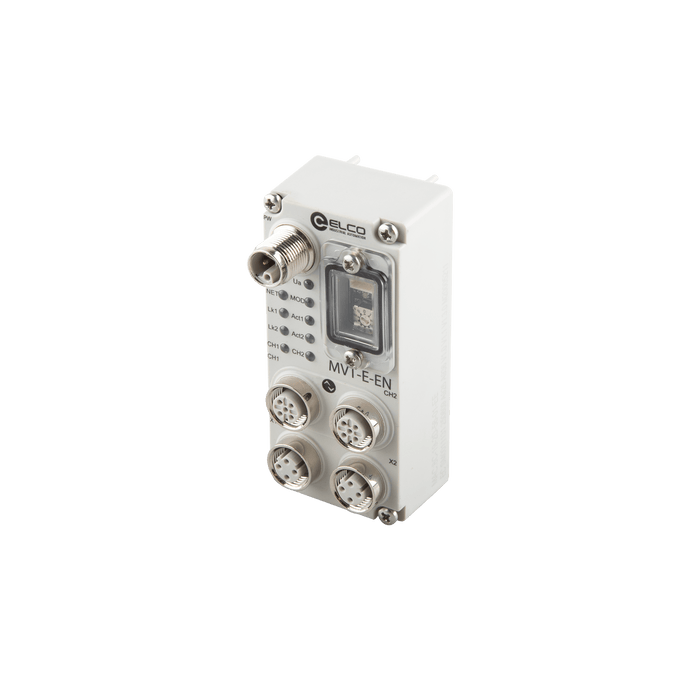

Pneumatic Interface, Multi-protocol Integrated Io-link Expansion Port for Pneumatic Manifold, 48 Outputs, M12 Connector, L-CODE power interface, 5-pole, Male, Two IO-Link interface, Class-A, 5 pin, Female, A-CODE, Two D-CODE bus interfaces, 4-pole, Female, The three protocols are Profinet, CC-Link IEFB, Ethernet/IP.

MVT-E-EN

SKU MVT-E-EN
by ELCO Industrial Automation

Pneumatic Interface, Multi-protocol Integrated Io-link Expansion Port for Pneumatic Manifold, 48 Outputs, M12 Connector, L-CODE power interface, 5-pole, Male, Two IO-Link interface, Class-A, 5 pin, Female, A-CODE, Two D-CODE bus interfaces, 4-pole, Female, The three protocols are Profinet, CC-Link IEFB, Ethernet/IP.

$249.19 - $249.19
$249.19
$249.19 - $249.19
$249.19
Availability:
In stock

Pneumatic Interface, Multi-protocol Integrated Io-link Expansion Port for Pneumatic Manifold, 48 Outputs, M12 Connector, L-CODE power interface, 5-pole, Male, Two IO-Link interface, Class-A, 5 pin, Female, A-CODE, Two D-CODE bus interfaces, 4-pole, Female, The three protocols are Profinet, CC-Link IEFB, Ethernet/IP.

Specifications

Max. number of solenoids 48
Power connection 1 X M12, L-CODE, 5-pin, Male
Supply voltage 24 V
Matching valve terminal series FESTO VTUG, ELCO MVTG
Max. number of valve positions 24
Storage temperature -20 ... +70 ℃
Certificate CE
Ambient temperature -5 ... +60 ℃
IP rating IP67

No additional information at this time.

Downloads

CE CE_P_MVT_V1.0_EN.pdf
Datasheet ELCO_MVT_DataSheet_CN.pdf
Datasheet ELCO_MVTG_DataSheet_CN.pdf
Datasheet ELCO_MVTE_DataSheet_CN.pdf
Datasheet DS_P_MVTG_BUS_V1.0_EN.pdf
Datasheet DS_P_MVTE_BUS_V1.0_EN.pdf
Datasheet DS_P_MVT-E-EN_V1.0_EN.pdf
3D Drawing CAD_P_MVT-E-EN_V2.0.stp
EPLAN Drawing EP_P_MVT-E-EN_V1.0.edz
Manual UM_P_MVT_V1.0_EN.pdf
Manual UM_P_MVT_V1.0_CN.pdf
Configuration file Config_P_MVT-E-EN_V1.0.zip
