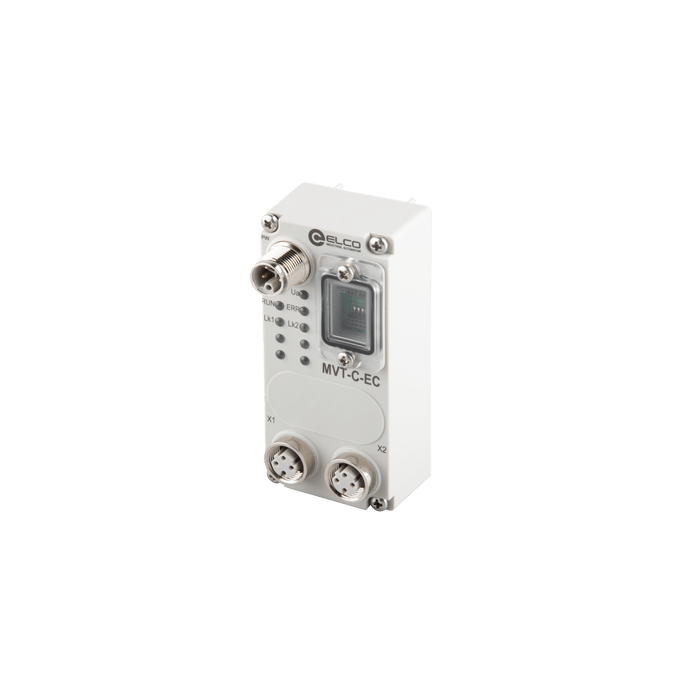

Pneumatic Interface, Ethercat Protocol for Pneumatic Manifold, 48 Outputs, M12 Connector, L-CODE power interface, 5-pole, Male, Two D-CODE bus interfaces, 4-pole, Female.

Specifications

Communication protocol EtherCAT
Certificate CE
Supply voltage 24 V
IP rating IP67
Max. number of solenoids 48
Power connection 1 X M12, L-CODE, 5-pin, Male
Matching valve terminal series FESTO VTUG, ELCO MVTG, ELCO MVTE
Max. number of valve positions 24
Ambient temperature -5 ... +60 ℃

No additional information at this time.

Downloads

CE CE_P_MVT_V1.0_EN.pdf
Datasheet ELCO_MVT_DataSheet_CN.pdf
Datasheet ELCO_MVTG_DataSheet_CN.pdf
Datasheet ELCO_MVTE_DataSheet_CN.pdf
Datasheet DS_P_MVTG_BUS_V1.0_EN.pdf
Datasheet DS_P_MVTE_BUS_V1.0_EN.pdf
Datasheet DS_P_MVT-C-EC_V1.0_EN.pdf
3D Drawing CAD_P_MVT-C-EC_V2.0.stp
EPLAN Drawing EP_P_MVT-C-EC_V1.0.edz
Manual UM_P_MVT_EC_V1.0_EN.pdf
Manual UM_P_MVT_EC_V1.0_CN.pdf
Configuration file Config_P_MVT-C-EC_V1.0.zip
