Altech 3Z5UM DLS8 - UL508 Listed Manual Motor Controllers “Suitable as Motor Disconnect”

Altech 3Z5UM DLS8 - UL508 Listed Manual Motor Controllers “Suitable as Motor Disconnect”

SKU 3Z5UM
by Altech
$215.75 - $215.75
$215.75
$215.75 - $215.75
$215.75
Availability:
In stock
  • DIN Rail Mounted
  • 17.5mm width per pole
  • Thermal Magnetic
  • 0.3-60A / 480Y/277V AC, 50/60Hz
  • Also DC rated
  • 480Y/277V AC
    0.3-25A: 1 pole - 42V DC; 2 Pole - 80V DC
    30-60A: 1 pole - 24V DC; 2 Pole - 60V DC
  • 10kA Short Circuit Withstand Capacity
  • Applications Include: AC Motor Starting, Across the Line, AC General Use,
    AC Resistance, AC Discharge Lamps (Ballast), AC Incandescent Lamps (Tungsten)

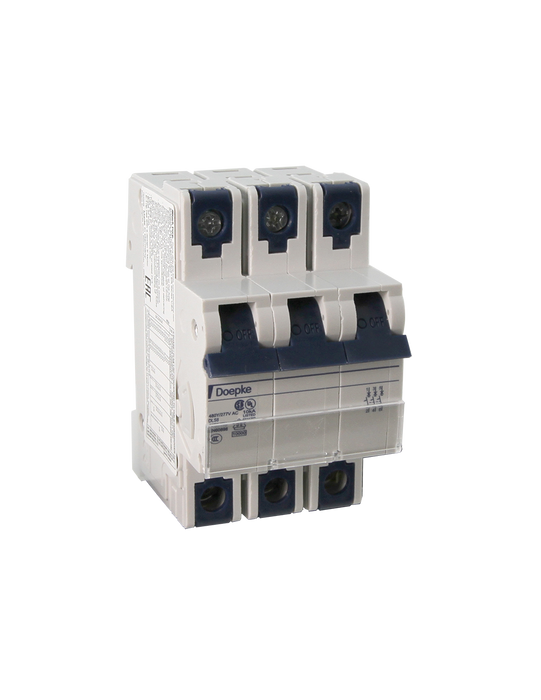

Product photo imprint will vary depending on part number selection.

Specifications

Part Number 3Z5UM
UL Breaker Approval UL 508
Trip Charateristic Z-Trip
Rated Current 5.0A
Electrical Current Type AC
Breaker Poles 3 poles

Documents

No additional information at this time.
