  • DIN Rail Mounted
  • 17.5mm width per pole
  • Thermal Magnetic
  • 0.3-60A / 480Y/277V AC, 50/60Hz
  • 10kA Short Circuit
    Withstand Capacity
  • Applications (on the load side of Branch Circuit Protection) include:
    Sensitive Electronics, Power Supplies, Appliance circuits, etc.

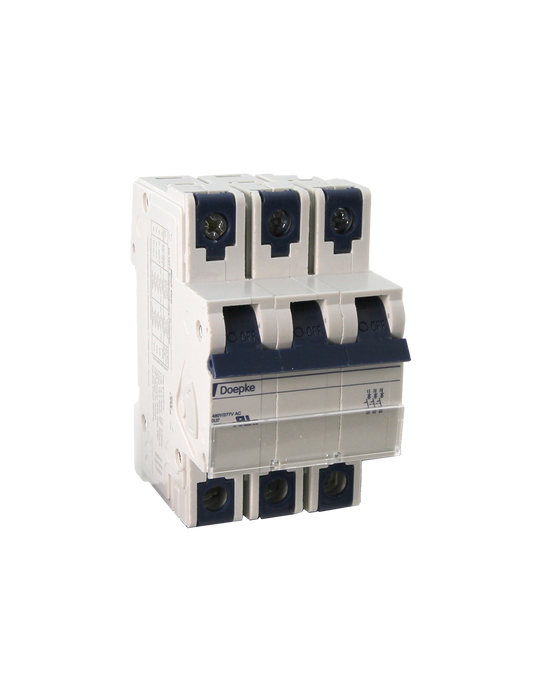

Product photo imprint will vary depending on part number selection.

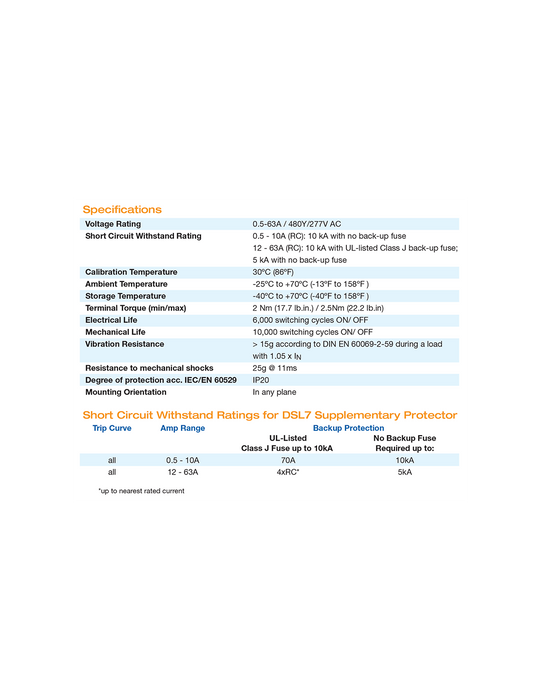

Specifications

Part Number 3D50UR
UL Breaker Approval UL 1077
Trip Charateristic D-Trip
Rated Current 50A
Rated Voltage - Breakers 480 Y/277V AC
Electrical Current Type AC
Breaker Poles 3 poles

Documents

No additional information at this time.
