  • AC (UL Series) and DC (DL Series)
  • DIN Rail Mounted
  • 17.5mm width
  • Thermal Magnetic
  • 240V, 480Y/277V AC, 50/60Hz
  • 125V DC (1 pole); 125/250V DC (2 pole)
  • 10kA Short Circuit Interrupting Capacity
  • HACR Type 40°C
  • Line/Load reversible

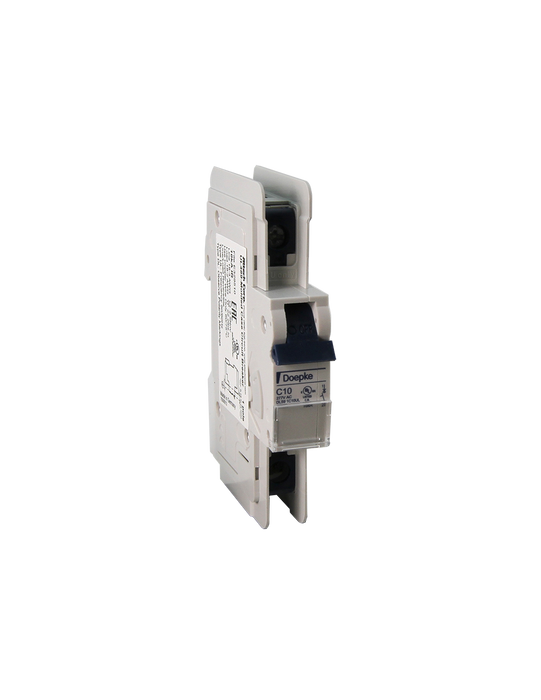

Product photo imprint will vary depending on part number selection.

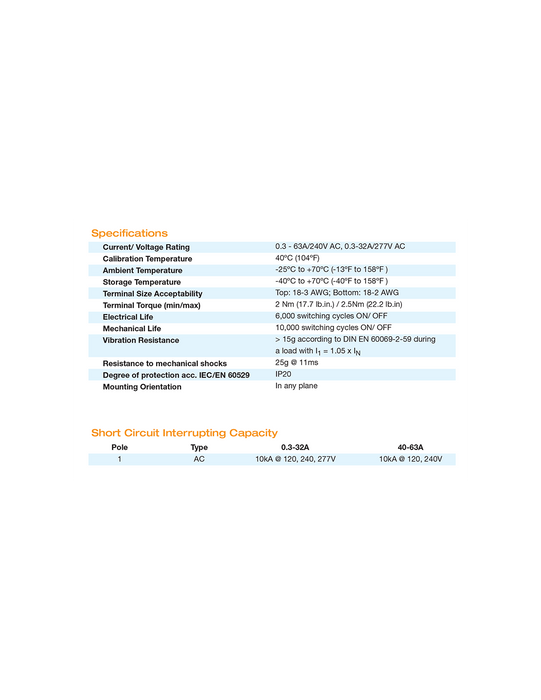

Specifications

Part Number 1D03UL
UL Breaker Approval UL 489
Trip Charateristic D-Trip
Rated Current 0.3A
Rated Voltage - Breakers 277V AC
Electrical Current Type AC
Breaker Poles 1 pole

Documents

No additional information at this time.
